Fire Sprinkler Inspector’s Test Connection Installation in Broward County
Florida Fire Solutions provides Fire Sprinkler Inspector’s Test Connection Installation in Broward County when a system needs a suitable connection for controlled sprinkler test flow and functional waterflow verification. We review the system arrangement, test requirements, access and discharge path before defining the installation. Call now to request an installation review.
Controlled sprinkler test flow
Install a dedicated connection for sprinkler-system testing

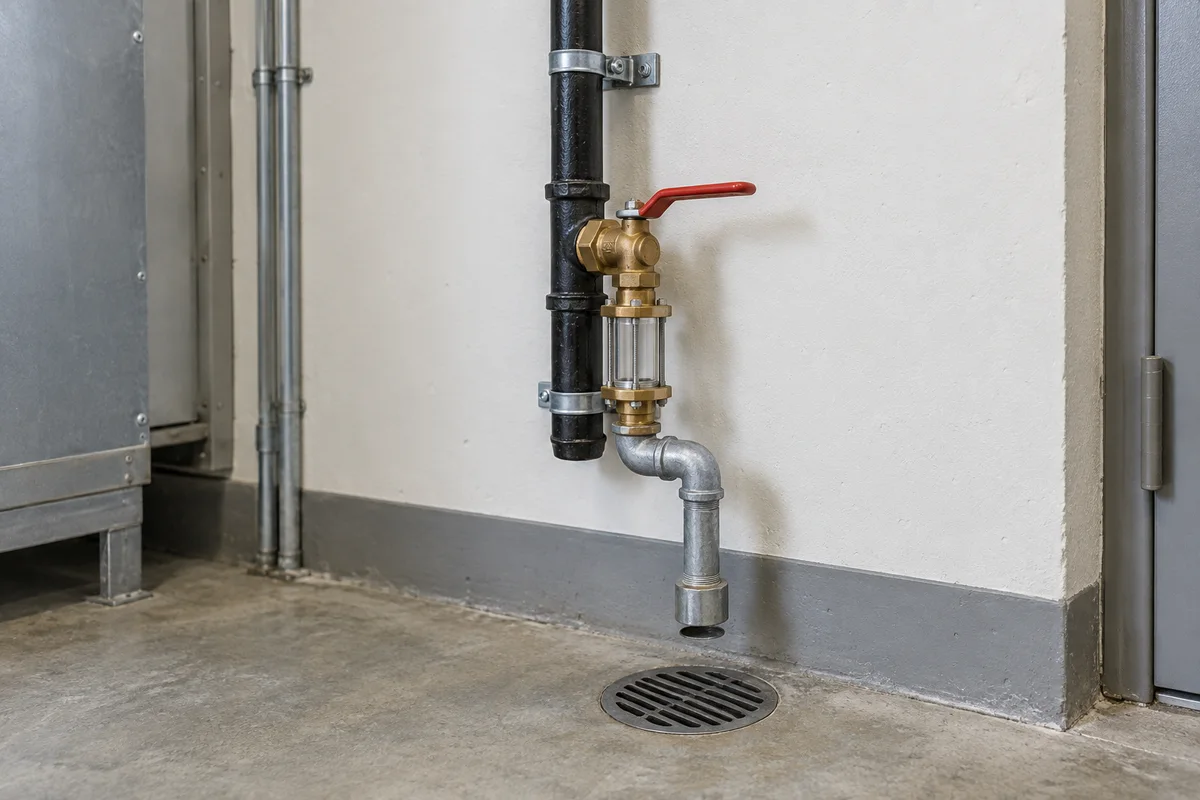

An inspector’s test connection provides a controlled flow path used to test sprinkler-system functions such as waterflow alarm operation. The installation has to match the actual system arrangement so the test flow passes the equipment it is intended to verify and discharges to an appropriate location.
Florida Fire Solutions reviews the existing wet sprinkler system, waterflow device location, available piping, proposed test connection point, access and discharge route before the work is scoped. The selected test valve or assembly is then matched to the project requirements rather than assuming one test-connection configuration fits every system.
This is installation work, not a routine sprinkler inspection. For broader commercial sprinkler services, see our fire protection services.
System review
Confirm what the inspector’s test connection needs to verify
The connection should be designed around the sprinkler system and the test function it is expected to serve. Manufacturer guidance for inspector’s test assemblies places the test connection in relation to the waterflow alarm equipment and offers different valve, sight-glass and test-orifice configurations for different systems.
System arrangement
We review the riser, floor-control or branch arrangement to understand which sprinkler system or zone the new test connection will serve.
Waterflow device location
The proposed connection is reviewed in relation to the applicable sprinkler waterflow device so test flow can exercise the intended alarm function rather than bypassing the component that needs verification.
Test assembly selection
The valve, test opening, sight-glass option and related assembly components are selected from the actual system and project requirements. We do not use one universal test-orifice size for every sprinkler system.
Accessible location
The test connection should be reachable for future inspection and testing. Working height, ceiling access, mechanical-room space and nearby equipment can affect the practical installation point.
Existing pipe connection
The sprinkler piping connection, fittings and support arrangement are reviewed before the test assembly is added so the work is defined as a proper system modification.
Project boundary
The proposal identifies the sprinkler test-connection work and any included drain piping. Alarm-panel programming, unrelated sprinkler deficiencies and building plumbing changes remain separate unless expressly included.
If you already have a drawing or deficiency identifying the missing test connection, Call now to review the installation scope.
Discharge routing
Plan where the test water will go before installing the connection
An inspector’s test connection creates actual water flow. The discharge route therefore matters just as much as the valve location, especially in finished mechanical rooms, occupied areas or buildings where a poor drain arrangement could release test water where it causes damage.
Manufacturer guidance calls for test discharge to terminate where the flow can be observed and where the released water will not damage the property. Florida Fire Solutions reviews the available drain route, visibility, nearby floor drains or approved discharge locations, and the amount of piping needed to carry test water away from the valve.
- Identify the proposed test-valve location and the available path for discharge piping.
- Keep the test discharge visible or otherwise arranged as required by the selected assembly and project documents.
- Route discharge away from finished surfaces, electrical equipment and other areas where testing could create avoidable water damage.
- Coordinate any floor-drain, air-gap or plumbing interface according to the actual project rather than assuming one discharge detail applies to every property.
- Confirm which drain piping and restoration work are included in the fire sprinkler proposal before installation begins.
A test-and-drain valve can combine functions in one assembly, but the inspector’s test function remains different from a main-drain test. A main-drain test evaluates comparative water-supply conditions at the riser; the inspector’s test connection creates controlled sprinkler test flow for functional system verification.
Functional verification
Verify the new test connection with the sprinkler waterflow signal
After installation, the connection should be functionally checked as part of the completed sprinkler modification. The test flow is used to confirm that water passes through the installed test assembly and that the associated sprinkler waterflow device responds as intended for the project.
Florida Fire Solutions coordinates the sprinkler-side test and confirmation of the expected signal with the building’s assigned alarm or monitoring provider when that interface is involved. If the inspector’s test produces the intended sprinkler flow but the downstream alarm signal is not received, that alarm-side condition remains a separate troubleshooting scope.
Likewise, if the existing waterflow switch itself has been diagnosed as defective, installing a test connection does not repair that failed device. The test connection provides the controlled flow used for testing; the waterflow switch remains its own system component.
Need a dedicated inspector’s test connection in Broward County? Review the system, discharge route and verification plan before installation.
Call for Installation ServiceBroward County coordination
Confirm the responsible fire authority when the installation is tied to a permit or correction
Broward County’s Board of Rules and Appeals maintains the County’s fire-code amendments and a current list of Broward Fire Code Officials. For an inspector’s test connection added as part of a permitted sprinkler project, plan-review correction or failed inspection, the exact property address helps identify the authority responsible for that project.
That matters because the requested test-connection location, discharge arrangement and project closeout can be reviewed by the applicable fire authority for the property. We use the active project documents and AHJ comments when they exist instead of assuming one Broward municipality’s preferred arrangement applies countywide.
When the work is not tied to an active permit, the installation scope should still be based on the existing sprinkler arrangement, the intended test function, the selected equipment and the available discharge route. A new inspector’s test connection should be added only where the actual system or project requires one.
Property address
Use the exact Broward County address to identify the local fire jurisdiction when the work is connected to a permit, correction or inspection record.
Plan-review comments
Provide any fire-plan or inspection comment that specifies the missing or inadequate test connection so the new installation responds to the actual project requirement.
Final verification
Coordinate the sprinkler-side functional check and any required alarm or monitoring confirmation under the applicable project procedure before the work is closed out.
Request an inspector’s test connection installation quote
Send Florida Fire Solutions the Broward County property address, sprinkler drawings or correction notes, riser photos and available drain information. We can review the test requirements, connection point, discharge route and functional verification scope.
